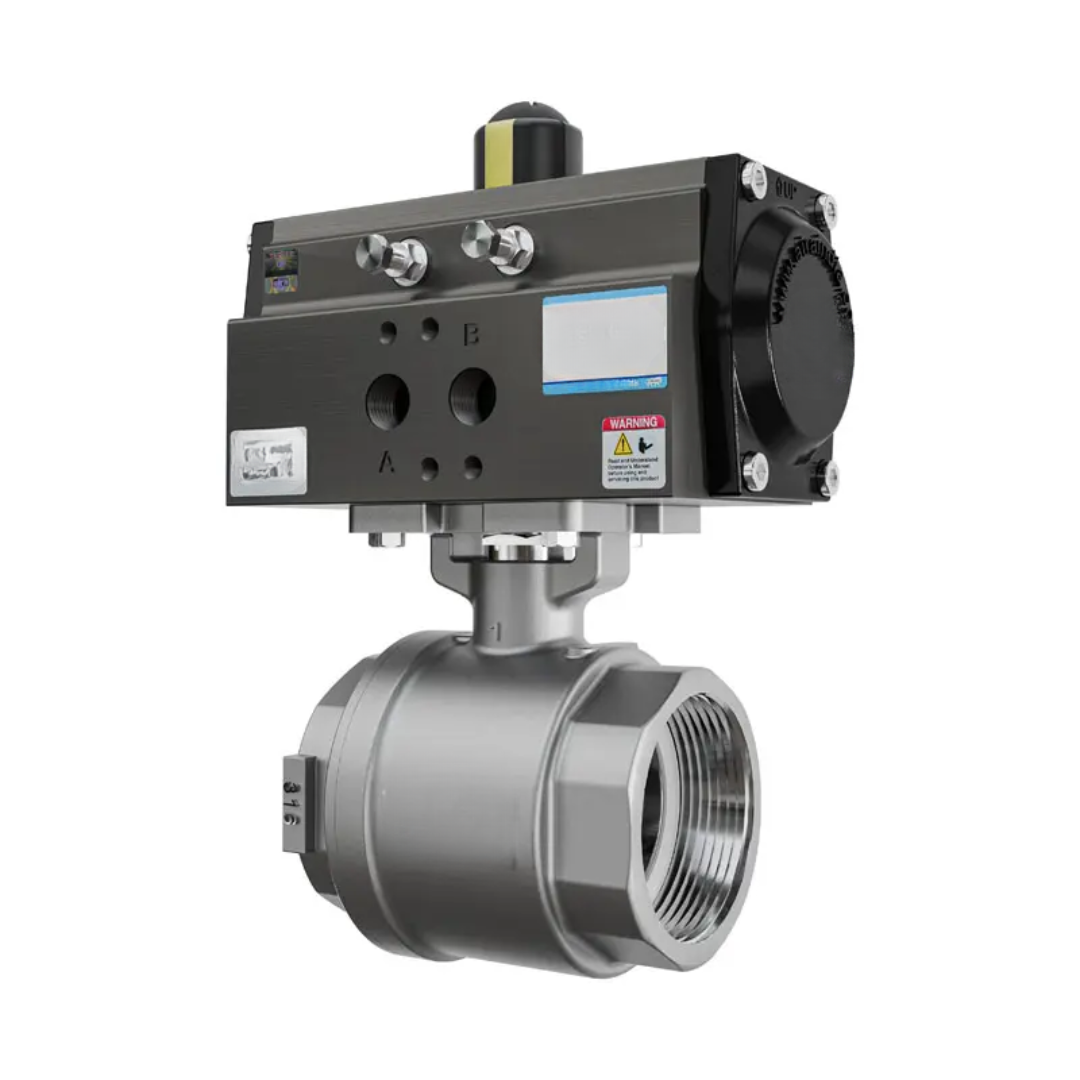

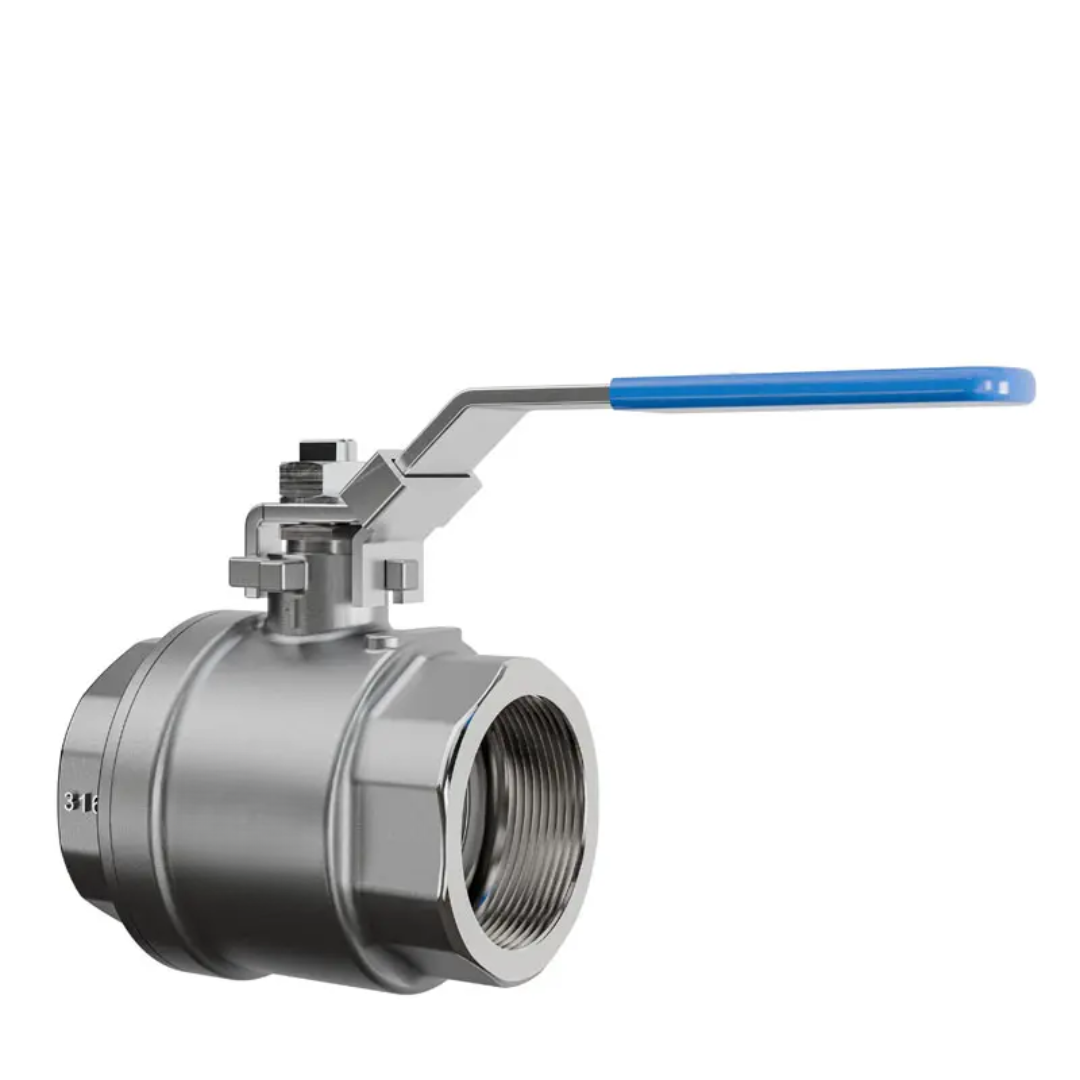

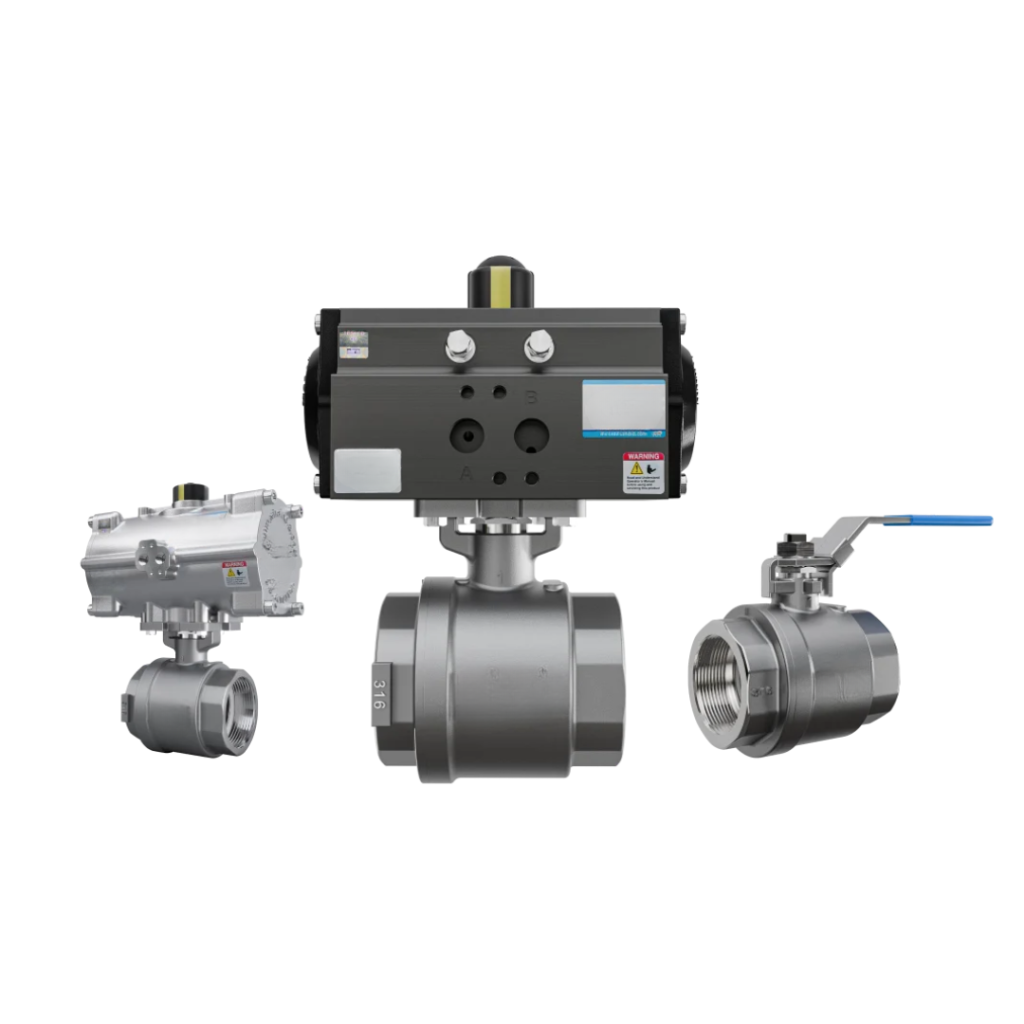

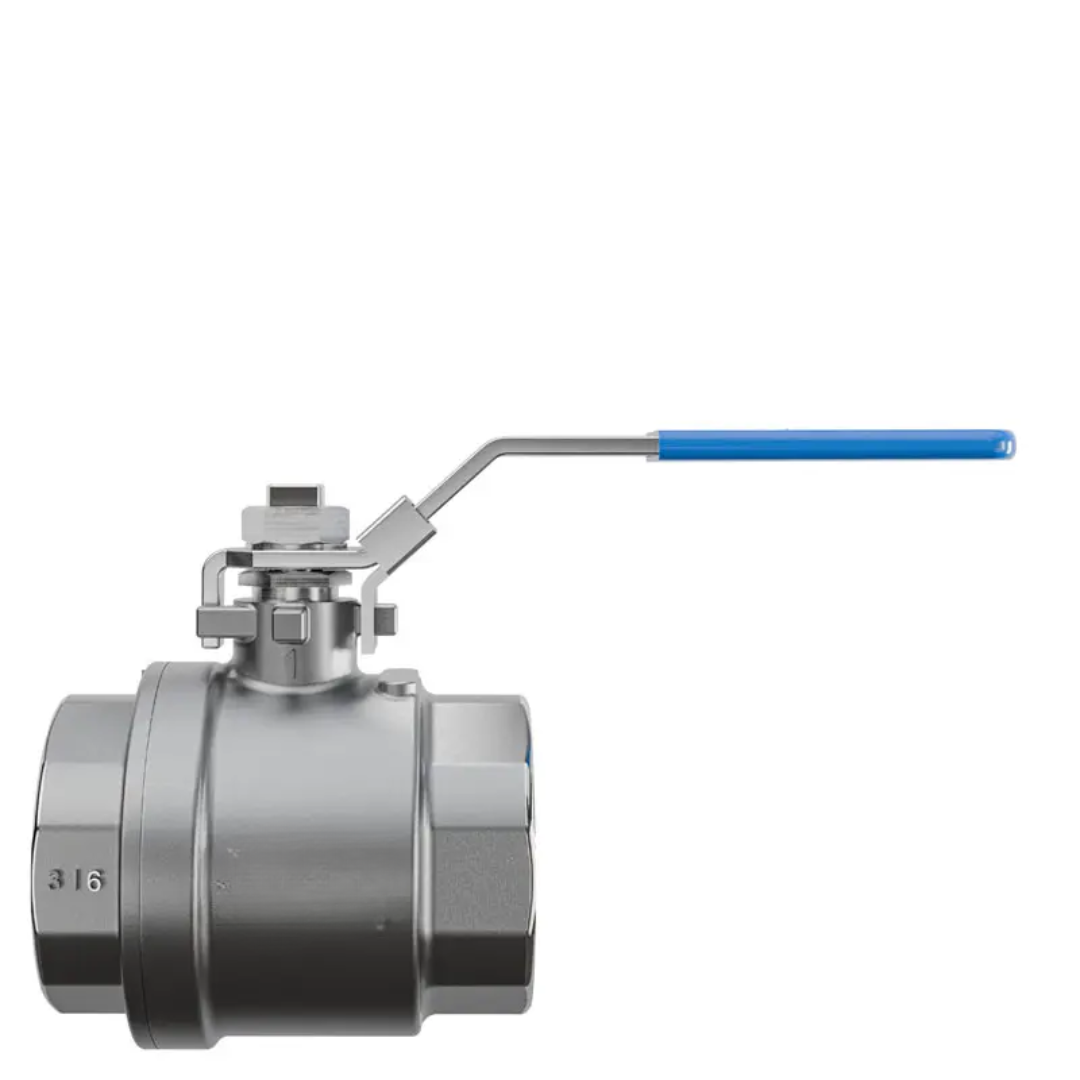

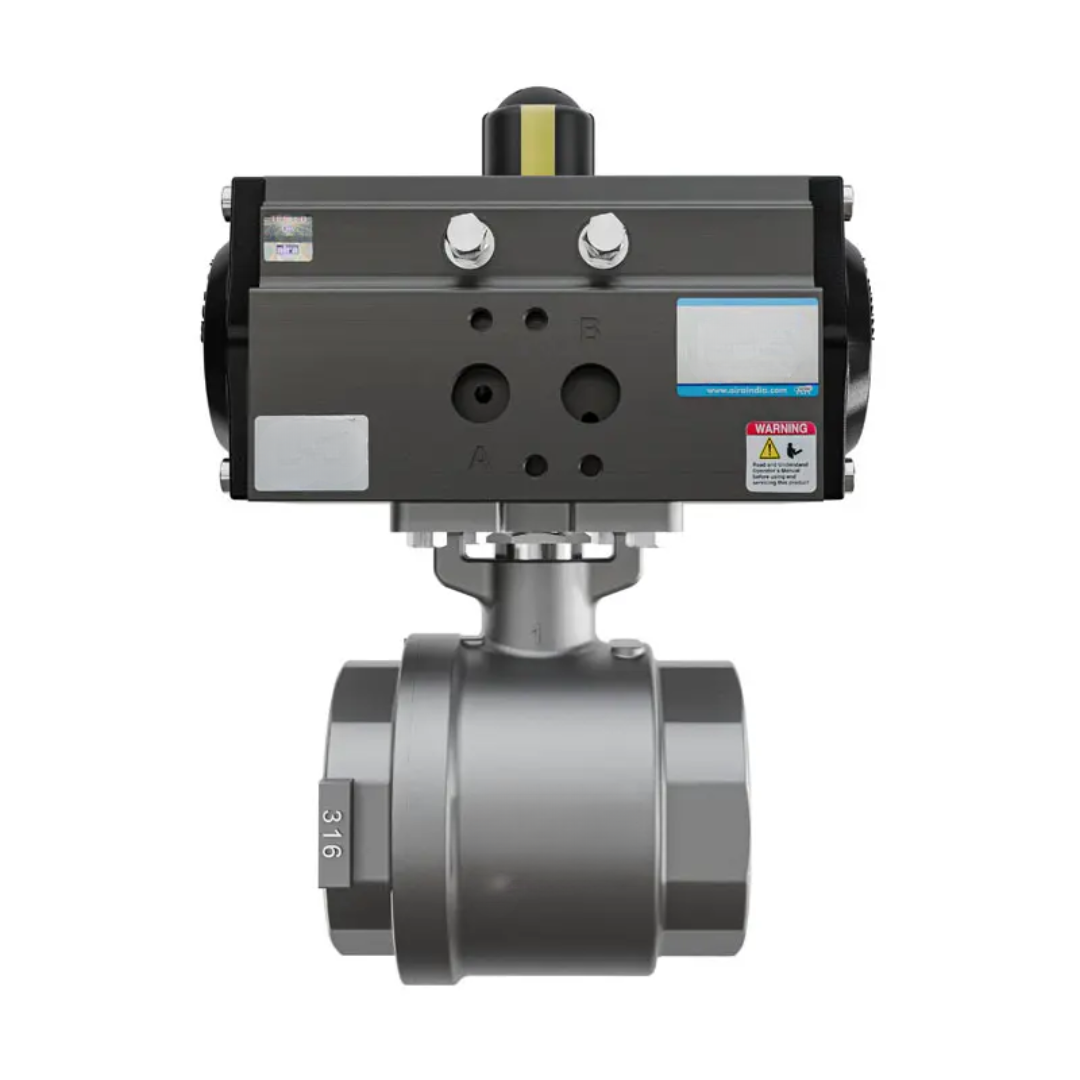

Single Piece Screwed End Ball Valve

Specification & Standard

Design & Manufacturer
ASME B 16.34 / BS EN ISO 17292

Valve Face To Face Dimension
ASME B 16.10 / BSEN ISO 17292

Inspection & Testing
API 598 / ISO-5208 / BS EN 12266-1

Size Range
1/4″ To 2″ Screwed 150#

Media
Air / Water / Oil & Gas

Ball Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Stem Material
Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Leakage Class
ISO 5208 Class VI / FCI – 70 – 2 / ASME B 16, 16. 104 (BUBBLE TIGHT SHUTOFF)

End Connection
ISO 7-1 FOR BSPT / BSP / ASME B 1.201 FOR NPT FOR S/E ASME 16.11 FOR SOCKET WELD

Tempreature Range
PTFE : Upto 180°C / RPTFE / TFM : 220°

Pressurre Class
150#

Body Material
CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Ball Type
Hollow & Solid

Seat Material
PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
