| Feature | Details |
| Material | Malleable Iron (IS:1879 / ASTM A197) |
| Finish | Hot-Dip Galvanised (Zinc Coated) |
| Thread Type | Male Threaded (BSP) on both ends |
| Size Configuration | Example: 25mm x 20mm (1″ x 3/4″) up to 100mm |
| Application | Pump Outlets, Industrial Manifolds, and Water Distribution Lines |

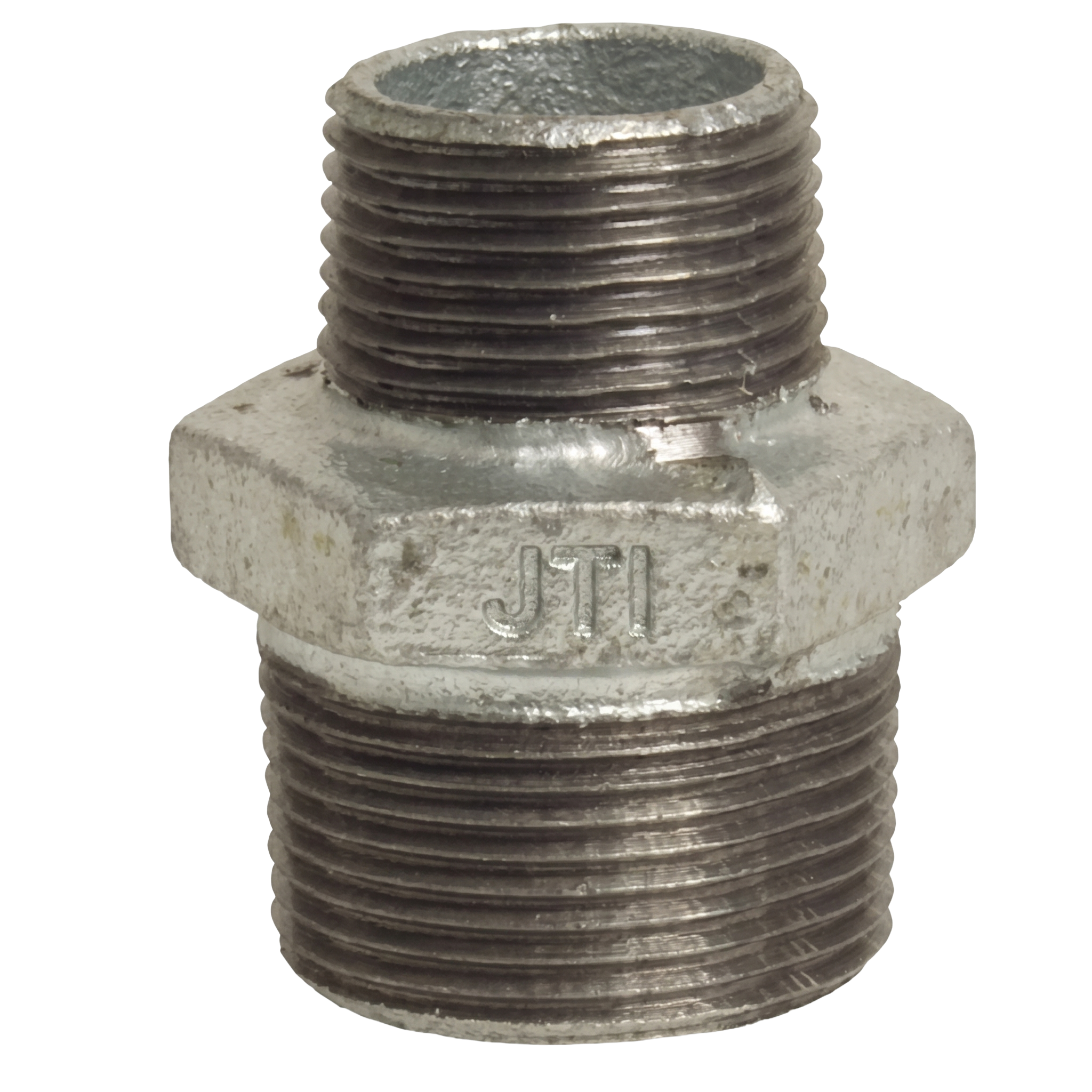

Our Galvanised Malleable Iron Reducing Nipple is the perfect solution for seamlessly connecting pipes of different sizes in a straight line. Engineered from high-grade malleable iron, it offers superior impact resistance and the structural integrity needed for industrial plumbing. The hot-dip galvanised finish provides a robust barrier against oxidation, making it suitable for water, gas, and air lines in both indoor and outdoor settings.
High-Grade Malleable Iron: Provides excellent ductility and strength, allowing the fitting to withstand high-torque installation without the risk of cracking or deformation.
Superior Galvanised Coating: Finished with a thick, uniform layer of zinc through a hot-dip process, ensuring the threads and body remain rust-free even in damp environments.
Dual-Diameter Connection: Specifically designed to transition between two different pipe sizes, eliminating the need for multiple fittings and reducing potential leak points.
Precision-Cut Male Threads: Features clean, deep-cut threads on both ends (standard BSP/NPT) for a secure, airtight, and leak-proof engagement with female fittings.
Reinforced Center Hex/Body: Built with additional wall thickness to handle the stress of high-pressure surges and mechanical loads.
